隆電“知識大講堂”欄目自推出以來受到了眾小伙伴的親睞與支持，小編們非常開心，同時也收到了不少寶貴的建議與意見，我們在此謝謝大家了！為了回饋大家的厚愛與幫助，從即日起，“知識大講堂”欄目將陸續推出我司“高低壓配電產品（中英雙語）”系列簡介，供大家交流與分享，也希望新加入隆電的小伙伴們能通過這個平臺學習、了解各類產品的相關知識，幫助你們順利入職、適應工作崗位的需要，也衷心地期盼此類宣傳資料能助力銷售工程師擴展新的銷售渠道，進一步提升銷售業績！

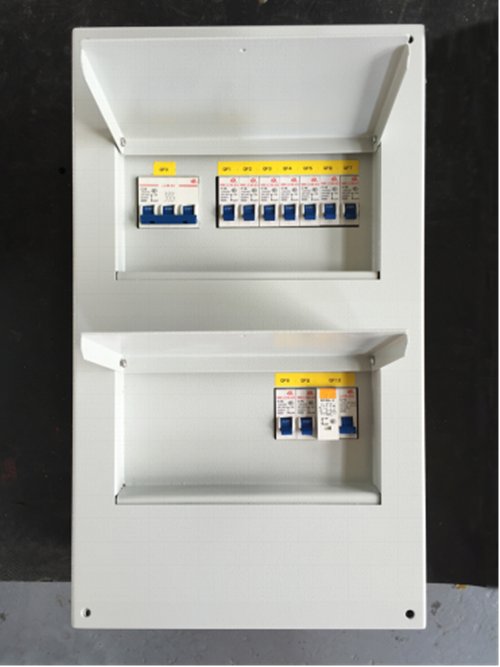

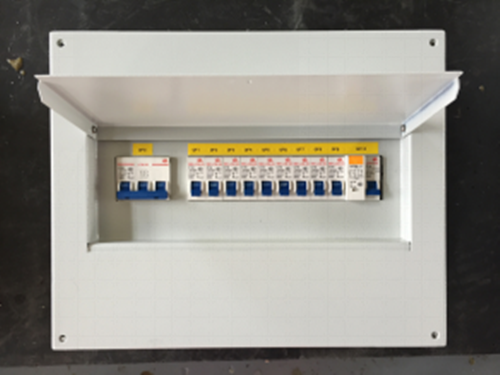

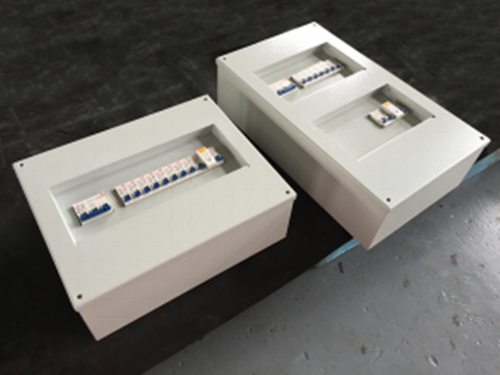

PZ照明配電箱實拍

制造商：天津市隆電電氣工程有限公司

合同編號：15-02-27/LD-C-155

一、產品簡介：

I. Brief introduction :

PZ30系列照明配電箱屬于終端組合式（配電箱），符合GB7251.3-2006《模數化終端組合電器》等國家標準及歐洲標準EN61493-1、2。是照明配電系統的主要終端電氣產品。廣泛用于各種樓宇、廣場、車站及工礦企業等場所。作為配電系統的終端設備。這類設備適合用于民用或適合在非專業人員可以進入的場合使用。

PZ30 series lighting distribution box belongs to the terminal combination type (distribution box), in line with the GB7251.3-2006 “modular terminal combination electrical appliances” and other national standards and European standard EN61493-1, 2. It is the main terminal electrical products of lighting power distribution system and is widely used in various buildings, squares, stations and industrial and mining enterprises and other places as the lighting power distribution system terminal equipment. This type of equipment is suitable for civilian use or the occasions where non professional personnel have access to.

二、主要性能與特點：

II. Main performance and features :

1.本產品用于交流、額定頻率50Hz、額定電壓380/220V，額定電流不超過100A的終端配電系統；

2.箱體外殼可以采用碳鋼噴涂、不銹鋼、聚碳酸酯制作，防護等級IP30；

3.配金屬或透明防護罩。透明罩使開關電器的工作狀態一目了然；

4.模數化設計理念。配電箱內的電器元件采用導軌安裝，元件寬度均以9mm為模數。布置緊湊合理，安裝，拆卸、更換、維修均很方便；

5.可根據用戶需要配制不同廠家的小型斷路器、電涌保護裝置、小型繼電器等模數化元件。構成美觀、豪華、強度高、耐撞擊、安全性能好的小型配電箱；

6.安裝方式靈活：明裝掛墻式、暗裝掛墻式。

1. This product is used for terminal power distribution system of AC, rated frequency 50Hz, rated voltage 380/220V and rated current not exceeding 100A;

2. The box shell can be made of carbon steel spraying, stainless steel or polycarbonate production, protection grade IP30;

3. It is provided with metal or transparent protective cover for the clear display of the working state of the switch electrical appliances;

4. It is with modular design concept. All electrical components in the distribution box are installed by rails with 9mm module as width of the component. This arrangement is compact and reasonable, and the installation, disassembly, replacement and maintenance are very convenient;

5. According to the user need, it can provide different manufacturers of miniature circuit breakers and surge protective device, miniature relay and other modular components which make the box beautiful, luxurious, high strength, impact resistance and good safety performance;

6. The installation method is flexible: wall mounted type and concealed hanging wall type.

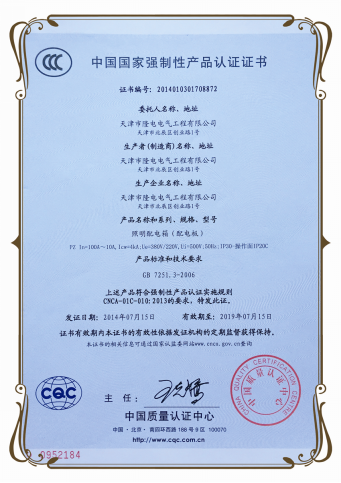

中國國家強制性產品認證證書

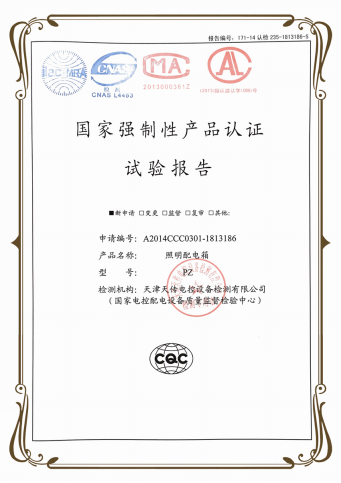

國家強制性產品認證試驗報告
